3D printer enclosure Series-30
3D printer enclosure made of aluminium extrusion profiles 30-series – 30x30mm with 6 mm T-slot.
Choose the currency you want to pay for your order
No taxes are included for orders outside the EU. Import taxes may be applied upon arrival, based on country laws. Customers with shipping addresses outside the EU are responsible for all duties, import taxes and brokerage fees.
Description
3D printer enclosure – aluminium extrusion profile Series-30
3D printer enclosure made of aluminium extrusion profiles 30-series – 30x30mm.
Surface finish – natural anodised or black coating and other colours (on request)
The new way how to upgrade your 3D printers.
For more information see 3D printer enclosure – Profile series
Size variation comparison
(width x depth x height) [mm]
Standard size (small size)
- S small 30 (450x450x550)
usable space (400x400x500) - M small 30 (550x550x550)
usable space (500x500x500) - L small 30 (550x550x700)
usable space (500x500x650)
Extended size (large size)
- S large 30 (450x450x550)
usable space (400x400x500)
storage space (400x400x144) - M large 30 (550x550x550)
usable space (500x500x500)
storage space (500x500x144) - L large 30 (550x550x850)
usable space (500x500x650)
storage space (500x500x144)
Suitable for most 3D printer manufacturers such as Prusa, Anycubic, Creality and more…
You can choose variant with or without acrylic and other cover panels (side, bottom and top panels).
- Panels included – ready to assembly product (bigger and heavier order – more expensive shipping)
- Panels NOT included – it is necessary to obtain the material itself from local suppliers. We provide you all the necessary data for manufacturing
- Only horizontal panels include – partial complete assembly
Our products are ready and backward compatible for future accessories – air filtration, indoor LED lighting, power supply and more. These add-ons will be added soon.
3D printer enclosure details
Aluminium extrusion profiles

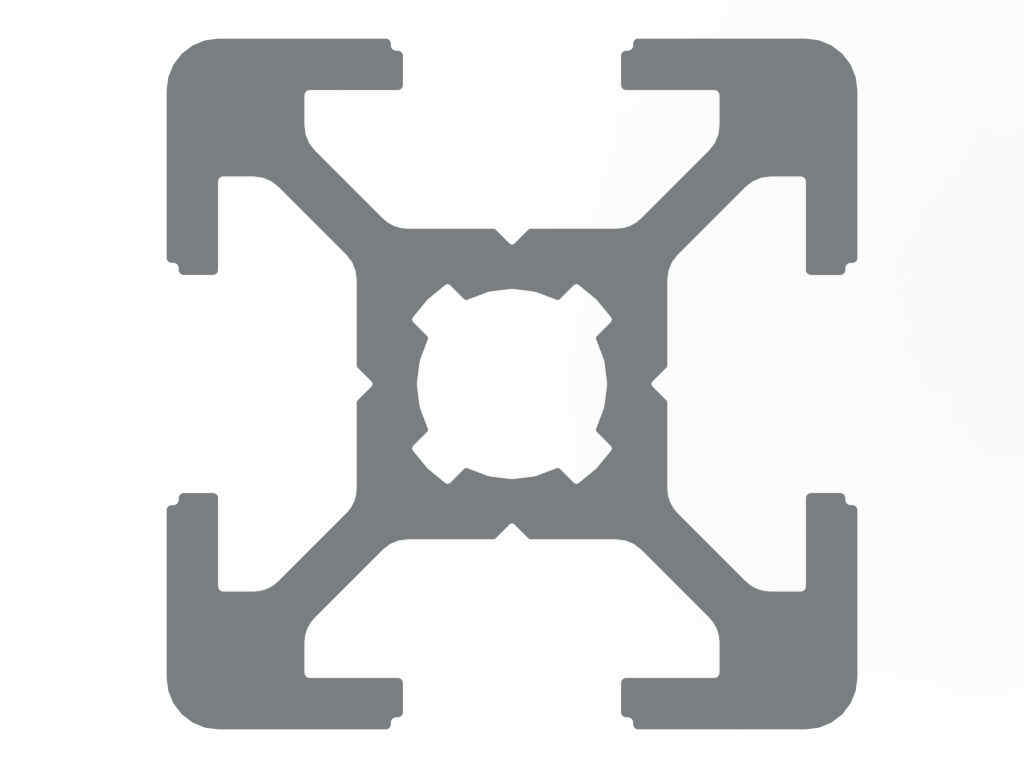

- 20-series (20x20mm), 6mm T-slot

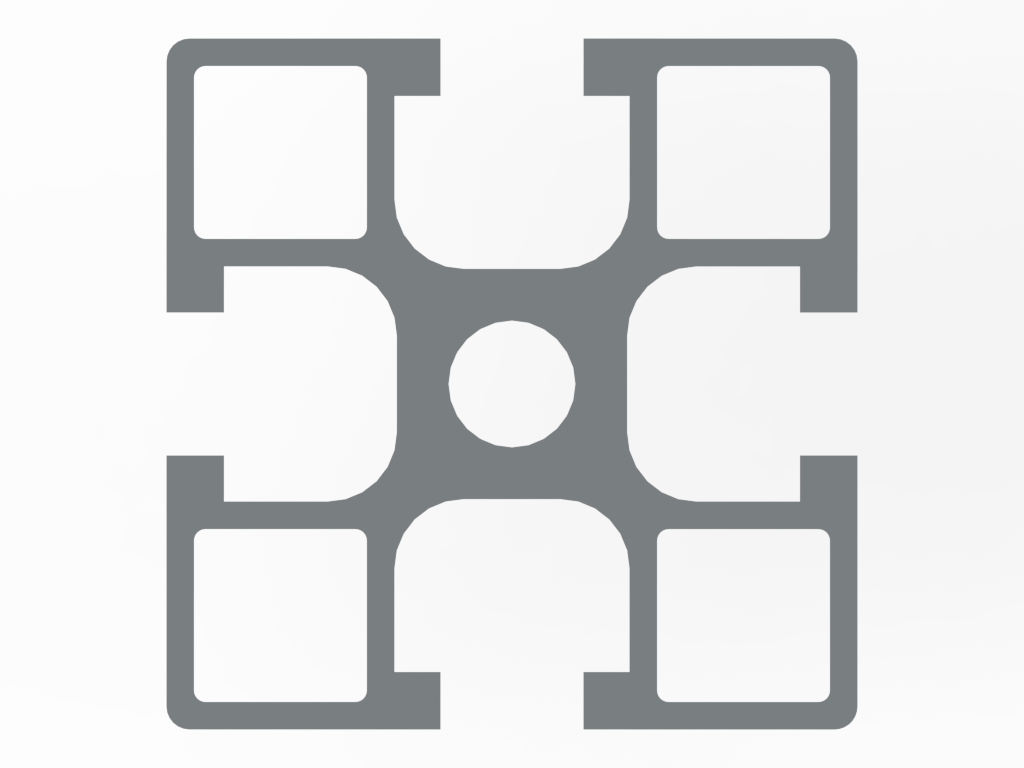

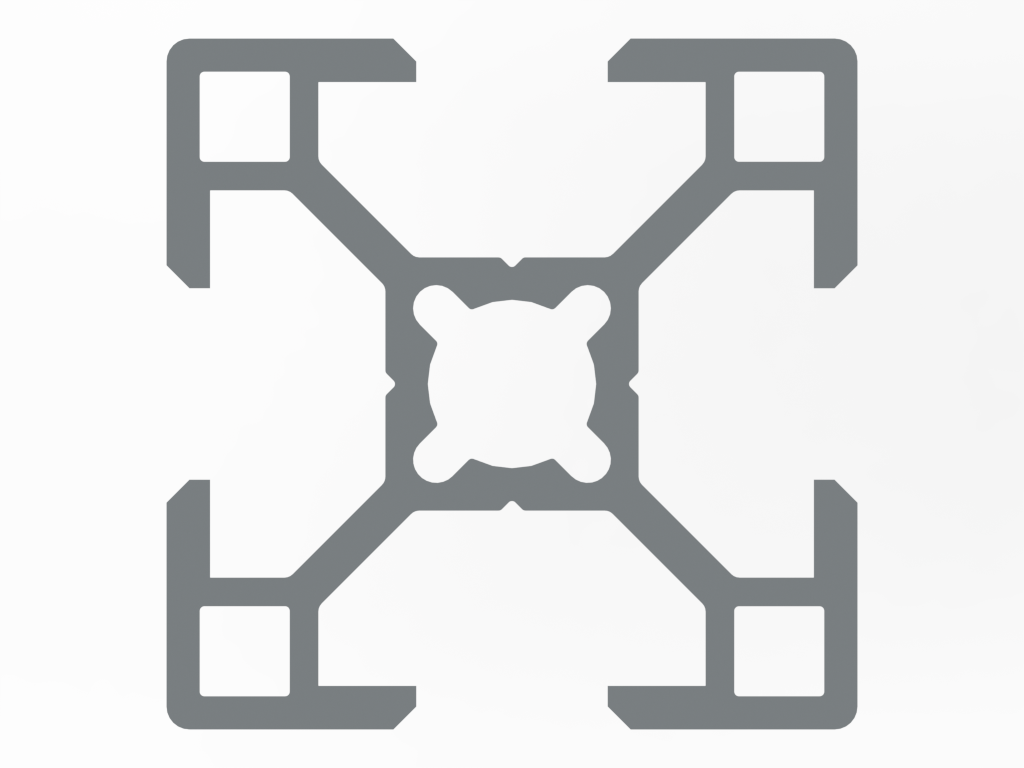

- 30-series (30x30mm), 6mm T-slot
Cover panels
- Base panel – Multiplex 6 mm board – carries a 3D printer
- Top and bottom panels – Multiplex 6mm board suitable for additional loads
- Back panel – HDF 3 mm board
- Side panels – transparent acrylic removable panels (plexiglass) for direct entry from the left and right side into the enclosure
- Front doors – transparent acrylic panels (plexiglass) – interchangeable with side panels
Sealing profiles
- Grey or black EPDM extrusion (according to choosed aluminium extrusions colour) for to covering T-slots on the visible sides
Levelers
- height-adjustable levelers
Storage space
- additional storage space for filaments or tools
- can be upgraded with a pull-out drawer
3D printer enclosure addons
Some of the add-ons are not currently available. It will be adjusted in the near future.
- LED lights
- Air filtration
- Smart power supply
- Camera
- Pull-out drawer
- Anti-vibration pad
- Custom enclosure colour
- and more…
Profile enclosure 30-series comparison
S small 30
450 x 450 x 550 mm
M small 30
550 x 550 x 550 mm
L small 30
550 x 550 x 700 mm
M large 30
550 x 550 x 700 mm
S large 30
450 x 450 x 700 mm
L large 30
550 x 550 x 850 mm
Profile enclosure 30-series comparison
M small 30
550 x 550 x 550 mm
S small 30
450 x 450 x 550 mm
S large 30
450 x 450 x 700 mm
M large 30
550 x 550 x 700 mm
L small 30
550 x 550 x 700 mm
L large 30
550 x 550 x 850 mm
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Enclosure size | S-small (450x450x550mm), S-large (450x450x700mm), M-small (550x550x550mm), M-large (550x550x700mm), L-small (550x550x700mm), L-large (550x550x850mm) |
| Enclosure panels | Included, Only horizontal panels, Not included |
