3D printer enclosure profile series

Aluminium extrusion profiles enclosure

Profile series 3D printer enclosure it is an efficient and economical way to increase the productivity and quality of 3D printing. Made of high quality aluminium extrusion profiles allows flexibility and possibilities of use. It is a stackable, modular and easy expandable system that can work independently or gives the opportunity to create 3D printing farms. This variant is focused on the creation of 3D printing farms.

Aluminium profile extrusions
Light and strong construction. T-slot for additional accessories
Easy installation
Plug and play solution. Quick assembly.
Modular system
Well thought out system for maximum compatibility. Modular sizes. Stackable system.
3D printer farm system
Created for 3D printer farms! No racks, no shelves, just one system for future expansion.
Custom enclosures
Design your own enclosure. Don't waste space and money.
JQ 3D printing solutions

What is 3D printer enclosure?

Specially designed enclosure for 3D printers. Compatible with Prusa i3 MK3, Prusa MINI, Anycubic i3 Mega, Ender 3 and more… Main construction made of aluminium extrusion profiles for maximum flexibility and durability. Added new user experiences through additional addons such as Power supply unit, Air filtration, LED lights and more.

Environment

Complete isolation from surrounding environment. Preventing dust from settling on the printer. Noise reduction.

Control

Wireless print without SD card. Camera monitoring. Enclosure RGBW light. Power supply control.

Air quality

Air filtration of volatile organic compounds (VOCs) though replaceable carbon filter.

Space management

Better spatial arrangement - it's a box. Possibility of creating a 3D print farm. Use your space effectively

New user interface

Whole new way of control. Forget SD cards. Control via display, web browser or mobile phone. Support Octoprint & Klipper.

Print quality

Temperature stable environment for 3D print quality improvement. No wind draft, you don't have to worry about heat bed adhesion.

New better user experience

List of interesting features that will give you new work experience

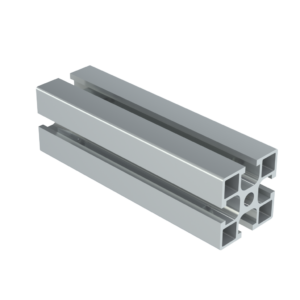

Aluminium Extrusion Profiles, 30-series, 30x30mm, AC-30-6, natural anodized, persp view-3 view, normal

Aluminium profiles

3D printer enclosure is made of aluminium construction profiles with standard natural anodized surface. Powder coating with colours is also possible. T-slot for additional accessories

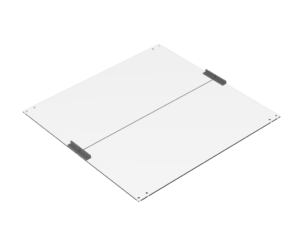

Plexi transparent perspective view 1 door 1 normal

Acrylic panels

Transparent panels allow a perfect view of what is happening inside. At the same time, it protects the printer from the external environment and vice versa.

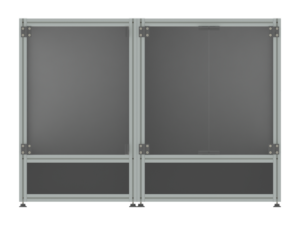

AL box natural ortho front farm 01 np normal

Modular system

The system comes in a variety of sizes to make it as compatible as possible with a large number of 3D printers.

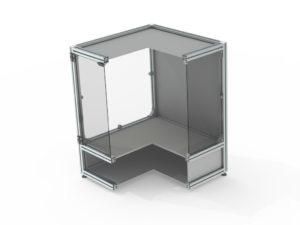

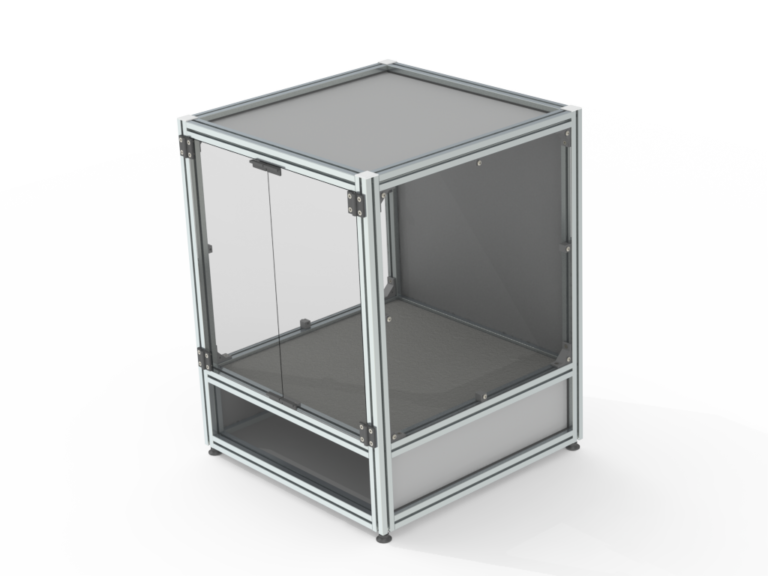

3D printer enclosure, 30-series aluminium extrusion profiles, M large size, ortho back view, normal, no 3D printer

Simplicity

This 3D printer enclosure system is as simple as possible to save time. Efficient use of resources. Compact size thanks to well-thought-out dimensions

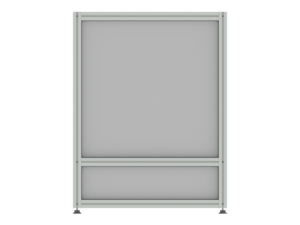

3D printer enclosure, 30-series aluminium extrusion profiles, M large size, persp section-1 view, normal, no 3D printer

Customization

Did you not find the required size? tell us and we will create a system fitting to your requirements!

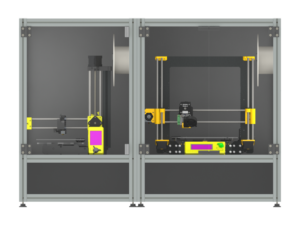

AL box natural ortho front farm 01 prt normal

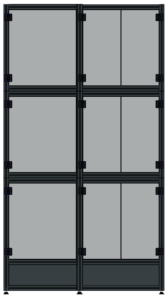

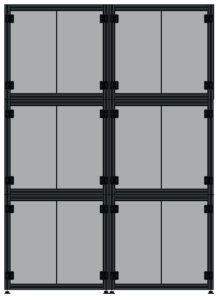

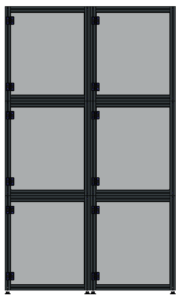

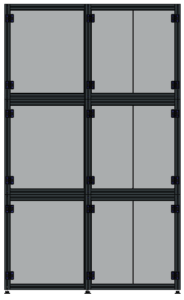

3D printer farm

This system is created for 3D printer farms! It’s a stackable system so there’s no problem to create a wall of 3D printers. No racks, no shelves, just one 3D printer enclosure next to other.

Addons and features

Our 3D system offers additional functions. You can order these functions as part of a 3D printer enclosure or separately in case of upgrade to already purchased 3D printer enclosures.

P0130 GR018 A

Power supply

The power supply allows you to remotely control the power of 3D printers. It is also used to power peripherals such as lighting or other user accessories.

s l400

Lights

With RGBW LED lighting you can see what’s going on inside. Colour can be changed according to the current print status. Due to use of dedicated white chip you have guarantee that white is real white.

images?q=tbn:ANd9GcSEohmJJ3 HQr9M6

Air filtration

Air filtration of volatile organic compounds (VOCs) though filter with replaceable active carbon pellets.

camera module

Camera

With the camera, you can monitor the print status at any time. You can also create advanced time lapse videos.

Enclosed 3D printer

You will no longer have the idea of ​​a noisy and smelly 3D printer next to you. No noise. No smell. Stabilized temperature. Now it’s easy to make it.

WiFi & Ethernet

3Dbox can be connected wirelessly through WiFi or with cable via ethernet connector.

Supported enhancements

COLOUR Raspberry Pi Symbol Registered

Raspberry Pi

Single-board computer with lot of compute power. Fitted with our breakout board with the possibility of further extensions. Compatibility with Raspberry Pi 4 and Raspberry Pi Zero 2.

logo

OctoPrint

Open-source OctoPrint software will enhance your outdated printer. Current improvements through plugins from a large community. Possibility of setting according to your preferences.

klipper logo

Klipper

Update your 3D printer! Open-source Klipper software will enhance your outdated printer just like OctoPrint but in different way.

Added value

Our 3D printer enclosure is not just a single-purpose product. Thanks to its well thought out size, it can be placed almost anywhere. Stand alone, on existing furniture or other equipment. We are not focused on just one brand. Anyone can be our customer. In the future if you get rid of a 3D printer or you no longer need our product for its original purposes, it doesn’t matter. You can use it for anything else! As we have already mentioned, it is not a single-purpose product. Thanks to the quality of all used materials, our products have an unlimited lifespan. Both mechanical and moral. Forget the Ikea lack table and other one purpose solution.

Space management

Why put filaments elsewhere when you can have them inside the box? For M size and L size there can be up to 4 filaments at a time. You can decide where it suits you better. If you have more 3D printers, a convenient and efficient way to save space is to use our stackable system. Do you need to create your own enhancements and additions? Our system is perfectly suited for this thanks to the universal aluminium profiles with a T-slot.

Product description

Enclosure system made of 30-series aluminium extrusion profiles with dimension 30x30mm and 6mm T slot. This system is offered in six standard variants. Two variants for each size. We also offer customization of the existing variants, or completely new according to you needs.

Aluminium Extrusion Profiles, 30-series, 30x30mm, AC-30-6, natural anodized, persp view-3 view, normal

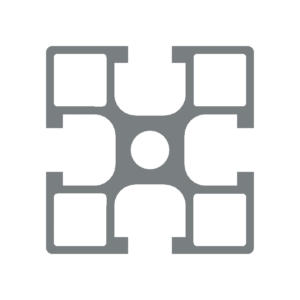

ac-30 front 2

More economical enclosure system made of 20-series aluminium extrusion profile with dimension 20x20mm and 6mm T slot. Offered in the same sizes as 30-series.

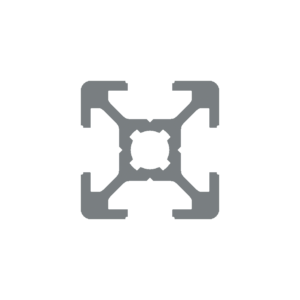

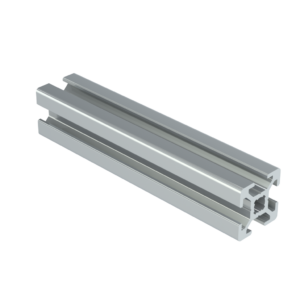

Aluminium Extrusion Profiles, 20-series, 20x20mm, BH-20-6, natural anodized, persp view-3 view, normal
Aluminium Extrusion Profiles, 20-series, 20x20mm, BH-20-6, natural anodized, ortho top view, dark

Standard sizes for 20 and 30 series

S - small

For smaller 3D printers similar size to Prusa MINI. Integrated filament holder.



Width: 450 mm, Depth: 450 mm, Height: 550, 700 mm

M - medium

For medium size 3D printers similar to Prusa Mk3 (Anycubic Mega, Ender 3 . . .)



Width: 550 mm, Depth: 550 mm, Height: 550, 700 mm

L - large

For large size 3D printers or medium size 3D printers. (Prusa Mk3 with filament holder)



Width: 550 mm, Depth: 550 mm, Height: 700, 850 mm

Profile enclosure 20-series comparison

AL box natural ortho front S small np 464x750

S small 20

450 x 450 x 550 mm

AL box natural ortho front M small np 464x750

M small 20

550 x 550 x 550 mm

AL box natural ortho front S large np 464x750

S large 20

450 x 450 x 700 mm

AL box natural ortho front L small np 464x750

L small 20

550 x 550 x 700 mm

AL box natural ortho front M large np 464x750

M large 20

550 x 550 x 700 mm

AL box natural ortho front L large np 464x750

L large 20

550 x 550 x 850 mm

Profile enclosure 20-series comparison

M small 20

550 x 550 x 550 mm

S small 20

450 x 450 x 550 mm

S large 20

450 x 450 x 700 mm

M large 20

550 x 550 x 700 mm

L small 20

550 x 550 x 700 mm

L large 20

550 x 550 x 850 mm

30-series

Profile enclosure 30-series comparison

AL box natural ortho front S small np 464x750

S small 30

450 x 450 x 550 mm

AL box natural ortho front M small np 464x750

M small 30

550 x 550 x 550 mm

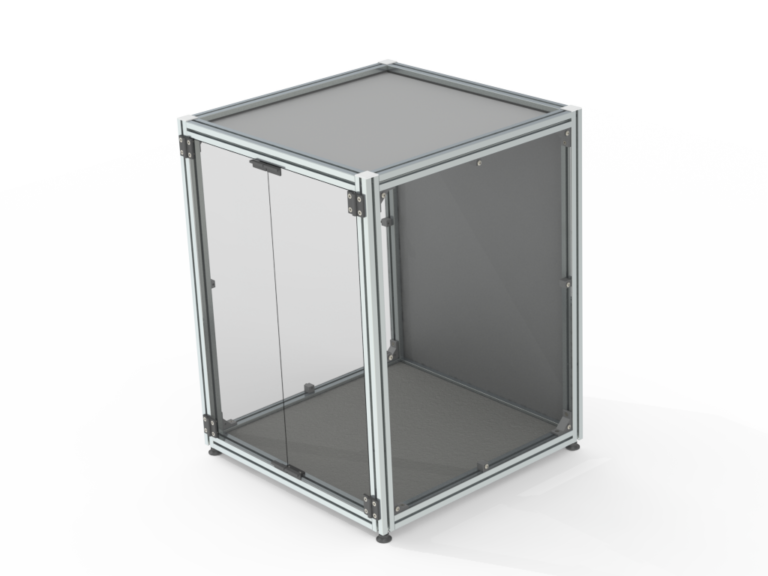

AL box natural ortho front L small np 464x750

L small 30

550 x 550 x 700 mm

AL box natural ortho front M large np 464x750

M large 30

550 x 550 x 700 mm

AL box natural ortho front S large np 464x750

S large 30

450 x 450 x 700 mm

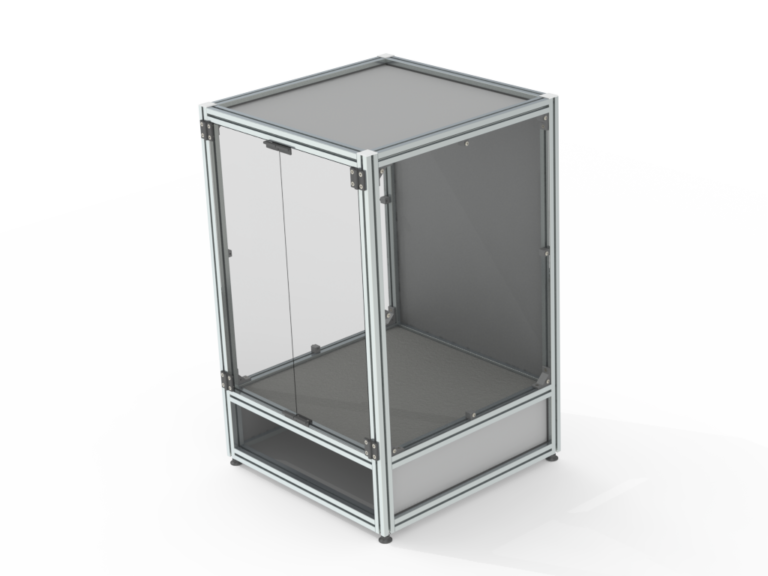

AL box natural ortho front L large np 464x750

L large 30

550 x 550 x 850 mm

Profile enclosure 30-series comparison

M small 30

550 x 550 x 550 mm

S small 30

450 x 450 x 550 mm

S large 30

450 x 450 x 700 mm

M large 30

550 x 550 x 700 mm

L small 30

550 x 550 x 700 mm

L large 30

550 x 550 x 850 mm

Enclosure model comparison

S small 20 enclosure

20-series enclosure

20-series aluminium extrusion profile 20x20mm, T-slot 6mm

S small size

Short version 3D printer enclosure

Same height as M small size enclosure

External and internal dimensions
(width x depth x height)

Overall external dimensions:
450 x 450 x 550 mm

Usable internal dimensions:
400 x 400 x 500 mm (printer enclosure) same as L large size enclosure

Standard features:

  • interchangeable doors - left or right side
  • integrated filament holder (max 2 filaments)
  • magnetic door holder
  • removable transparent acrylic side panels
  • non transparent side panels - white HDF

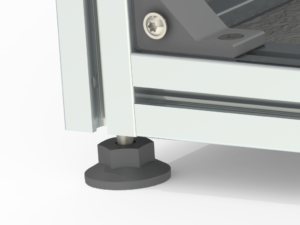

  • adjustable levelers
  • stackable design - up to 4 boxes can be stacked
  • all horizontal panels for suitable heavy load
  • ready for current or future addons

Addon features:

  • air filtration with changeable active carbon pellets
  • enclosure LED light - White or RGBW (can show colour by print status)
  • power supply unit with Raspberry Pi link (compatible with RPI 3, RPI 4, RPI Nano 2)
  • pull-out drawer (for Large Size)
  • black or custom aluminium profiles colour
  • non transparent side panels custom colour

3D printer compatibility
List of known compatible 3D printers:

  • Prusa MINI and similar size
  • and more...

If you are not sure about the compatibility of your 3D printer, please write to us and we will

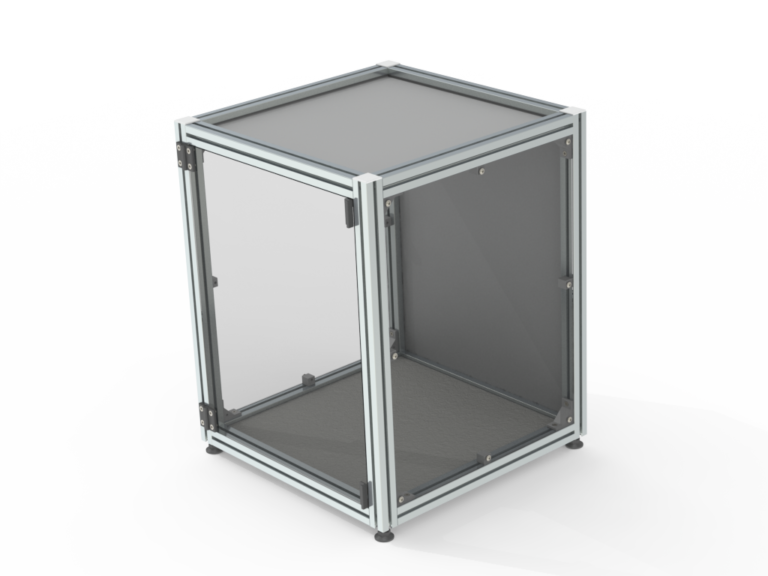

3D printer enclosure, 30-series aluminium extrusion profiles, S small size, persp view-1 view, normal, no 3D printer
View-1 view - S small size, 30-series
image gallery

S large 20 enclosure

20-series enclosure

20-series aluminium extrusion profile 20x20mm, T-slot 6mm

S large size

Long version 3D printer enclosure with additional storage place for tools, filament and more.

Same height as M large size and L small size enclosures

External and internal dimensions
(width x depth x height)

Overall external dimensions:
450 x 450 x 700 mm
Usable internal dimensions:
400 x 400 x 500 mm (printer enclosure) same as L small size enclosure

400 x 400 x 144 mm (storage)

Standard features:

  • can be used upside down - storage place top
  • interchangeable doors - left or right side
  • integrated filament holder (max 2 filaments)
  • magnetic door holder
  • removable transparent acrylic side panels
  • non transparent side panels - white HDF
  • adjustable levelers
  • stackable design - up to 4 boxes can be stacked
  • all horizontal panels for suitable heavy load
  • ready for current or future addons

Addon features:

  • air filtration with changeable active carbon pellets
  • enclosure LED light - White or RGBW (can show colour by print status)
  • power supply unit with Raspberry Pi link (compatible with RPI 3, RPI 4, RPI Nano 2)
  • pull-out drawer (for Large Size)
  • black or custom aluminium profiles colour
  • non transparent side panels custom colour

3D printer compatibility
List of known compatible 3D printers:

  • Prusa MINI and similar size
  • and more...

If you are not sure about the compatibility of your 3D printer, please write to us and we will

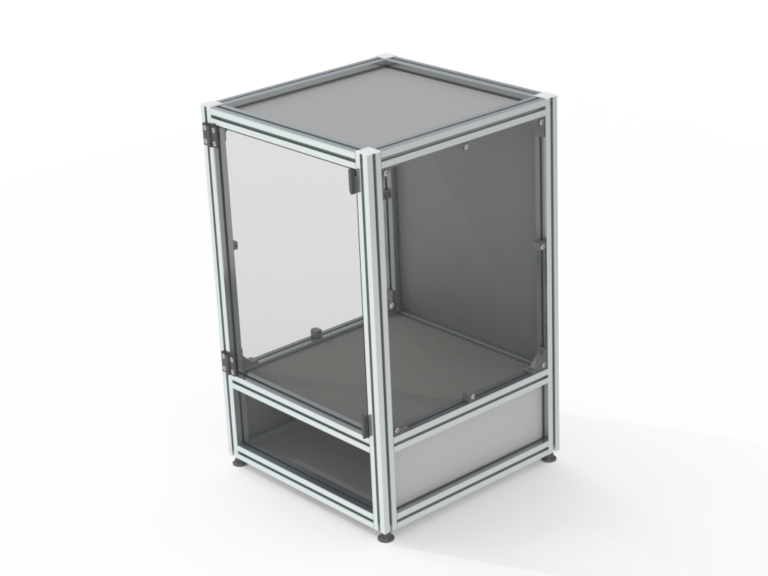

3D printer enclosure, 30-series aluminium extrusion profiles, S large size, persp view-1 view, normal, no 3D printer
View-1 view - S large size, 30-series
image gallery

M small 20 enclosure

20-series enclosure

20-series aluminium extrusion profile 20x20mm, T-slot 6mm

M small size

Short version 3D printer enclosure

Same height as S small size enclosure

External and internal dimensions
(width x depth x height)

Overall external dimensions:
550 x 550 x 550 mm
Usable internal dimensions:
500 x 500 x 500 mm (printer enclosure) same as M large size enclosure

Standard features:

  • interchangeable doors - left or right side
  • integrated filament holder (max 4 filaments)
  • magnetic door holder
  • removable transparent acrylic side panels
  • non transparent side panels - white HDF
  • adjustable levelers
  • stackable design - up to 4 boxes can be stacked
  • all horizontal panels for suitable heavy load
  • ready for current or future addons

Addon features:

  • air filtration with changeable active carbon pellets
  • enclosure LED light - White or RGBW (can show colour by print status)
  • power supply unit with Raspberry Pi link (compatible with RPI 3, RPI 4, RPI Nano 2)
  • pull-out drawer (for Large Size)
  • black or custom aluminium profiles colour
  • non transparent side panels custom colour

3D printer compatibility
List of known compatible 3D printers:

  • Prusa Mk3 and similar size
  • Anycubic i3 Mega
  • and more...

If you are not sure about the compatibility of your 3D printer, please write to us and we will

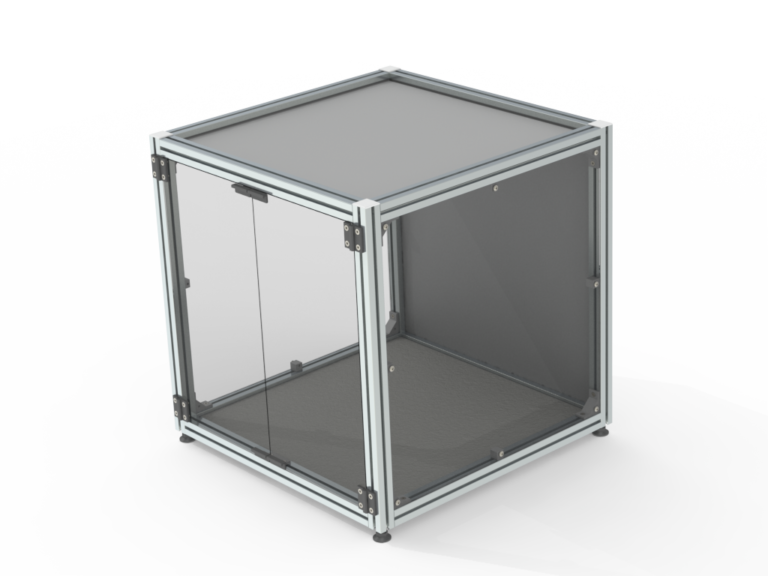

3D printer enclosure, 30-series aluminium extrusion profiles, M small size, persp view-1 view, normal, no 3D printer
View-1 view - M small size, 30-series
image gallery

M large 20 enclosure

20-series enclosure

20-series aluminium extrusion profile 20x20mm, T-slot 6mm

M large size

Long version 3D printer enclosure with additional storage place for tools, filament and more.

Same height as S large size and L small size enclosures

External and internal dimensions
(width x depth x height)

Overall external dimensions:
550 x 550 x 700 mm
Usable internal dimensions:
500 x 500 x 500 mm (printer enclosure) same as M small size enclosure

500 x 500 x 144 mm (storage)

Standard features:

  • can be used upside down - storage place top
  • interchangeable doors - left or right side
  • integrated filament holder (max 4 filaments)
  • magnetic door holder
  • removable transparent acrylic side panels
  • non transparent side panels - white HDF
  • adjustable levelers
  • stackable design - up to 4 boxes can be stacked
  • all horizontal panels for suitable heavy load
  • ready for current or future addons

Addon features:

  • air filtration with changeable active carbon pellets
  • enclosure LED light - White or RGBW (can show colour by print status)
  • power supply unit with Raspberry Pi link (compatible with RPI 3, RPI 4, RPI Nano 2)
  • pull-out drawer (for Large Size)
  • black or custom aluminium profiles colour
  • non transparent side panels custom colour

3D printer compatibility
List of known compatible 3D printers:

  • Prusa Mk3 and similar size
  • Anycubic i3 Mega
  • and more...

If you are not sure about the compatibility of your 3D printer, please write to us and we will

3D printer enclosure, 30-series aluminium extrusion profiles, M large size, persp view-1 view, normal, no 3D printer
View-1 view - M large size, 30-series
image gallery

L small 20 enclosure

20-series enclosure

20-series aluminium extrusion profile 20x20mm, T-slot 6mm

L small size

Short version 3D printer enclosure

Same height as S large size and M large size enclosures

External and internal dimensions
(width x depth x height)

Overall external dimensions:
550 x 550 x 700 mm
Usable internal dimensions:
500 x 500 x 650 mm (printer enclosure) same as L large size enclosure

Standard features:

  • interchangeable doors - left or right side
  • integrated filament holder (max 4 filaments)
  • magnetic door holder
  • removable transparent acrylic side panels
  • non transparent side panels - white HDF
  • adjustable levelers
  • stackable design - up to 4 boxes can be stacked
  • all horizontal panels for suitable heavy load
  • ready for current or future addons

Addon features:

  • air filtration with changeable active carbon pellets
  • enclosure LED light - White or RGBW (can show colour by print status)
  • power supply unit with Raspberry Pi link (compatible with RPI 3, RPI 4, RPI Nano 2)
  • pull-out drawer (for Large Size)
  • black or custom aluminium profiles colour
  • non transparent side panels custom colour

3D printer compatibility
List of known compatible 3D printers:

  • Prusa Mk3 and similar size (with its filament holder)
  • Anycubic i3 Mega
  • and more...

If you are not sure about the compatibility of your 3D printer, please write to us and we will

3D printer enclosure, 30-series aluminium extrusion profiles, L small size, persp view-1 view, normal, no 3D printer
View-1 view - L small size, 30-series
image gallery

L large 20 enclosure

20-series enclosure

20-series aluminium extrusion profile 20x20mm, T-slot 6mm

L large size

Long version 3D printer enclosure with additional storage place for tools, filament and more.

External and internal dimensions
(width x depth x height)

Overall external dimensions:
550 x 550 x 850 mm
Usable internal dimensions:
500 x 500 x 650 mm (printer enclosure) same as L small size enclosure

500 x 500 x 144 mm (storage)

Standard features:

  • can be used upside down - storage place top
  • interchangeable doors - left or right side
  • integrated filament holder (max 4 filaments)
  • magnetic door holder
  • removable transparent acrylic side panels
  • non transparent side panels - white HDF
  • adjustable levelers
  • stackable design - up to 4 boxes can be stacked
  • all horizontal panels for suitable heavy load
  • ready for current or future addons

Addon features:

  • air filtration with changeable active carbon pellets
  • enclosure LED light - White or RGBW (can show colour by print status)
  • power supply unit with Raspberry Pi link (compatible with RPI 3, RPI 4, RPI Nano 2)
  • pull-out drawer (for Large Size)
  • black or custom aluminium profiles colour
  • non transparent side panels custom colour

3D printer compatibility
List of known compatible 3D printers:

  • Prusa Mk3 and similar size (with its filament holder)
  • Anycubic i3 Mega
  • and more...

If you are not sure about the compatibility of your 3D printer, please write to us and we will

3D printer enclosure, 30-series aluminium extrusion profiles, L large size, persp view-1 view, normal, no 3D printer
View-1 view - L large size, 30-series
image gallery
30-series

S small 30 enclosure

30-series enclosure

30-series aluminium extrusion profile 30x30mm, T-slot 6mm

S small size

Short version 3D printer enclosure

Same height as M small size enclosure

External and internal dimensions
(width x depth x height)

Overall external dimensions:
450 x 450 x 550 mm

Usable internal dimensions:
400 x 400 x 500 mm (printer enclosure) same as L large size enclosure

Standard features:

  • interchangeable doors - left or right side
  • integrated filament holder (max 2 filaments)
  • magnetic door holder
  • removable transparent acrylic side panels
  • non transparent side panels - white HDF
  • adjustable levelers
  • stackable design - up to 4 boxes can be stacked
  • all horizontal panels for suitable heavy load
  • ready for current or future addons

Addon features:

  • air filtration with changeable active carbon pellets
  • enclosure LED light - White or RGBW (can show colour by print status)
  • power supply unit with Raspberry Pi link (compatible with RPI 3, RPI 4, RPI Nano 2)
  • pull-out drawer (for Large Size)
  • black or custom aluminium profiles colour
  • non transparent side panels custom colour

3D printer compatibility
List of known compatible 3D printers:

  • Prusa MINI and similar size
  • and more...

If you are not sure about the compatibility of your 3D printer, please write to us and we will

3D printer enclosure, 30-series aluminium extrusion profiles, S small size, persp view-1 view, normal, no 3D printer
View-1 view - S small size, 30-series
image gallery

S large 30 enclosure

30-series enclosure

30-series aluminium extrusion profile 30x30mm, T-slot 6mm

S large size

Long version 3D printer enclosure with additional storage place for tools, filament and more.

Same height as M large size and L small size enclosures

External and internal dimensions
(width x depth x height)

Overall external dimensions:
450 x 450 x 700 mm
Usable internal dimensions:
400 x 400 x 500 mm (printer enclosure) same as L small size enclosure

400 x 400 x 144 mm (storage)

Standard features:

  • can be used upside down - storage place top
  • interchangeable doors - left or right side
  • integrated filament holder (max 2 filaments)
  • magnetic door holder
  • removable transparent acrylic side panels
  • non transparent side panels - white HDF
  • adjustable levelers
  • stackable design - up to 4 boxes can be stacked
  • all horizontal panels for suitable heavy load
  • ready for current or future addons

Addon features:

  • air filtration with changeable active carbon pellets
  • enclosure LED light - White or RGBW (can show colour by print status)
  • power supply unit with Raspberry Pi link (compatible with RPI 3, RPI 4, RPI Nano 2)
  • pull-out drawer (for Large Size)
  • black or custom aluminium profiles colour
  • non transparent side panels custom colour

3D printer compatibility
List of known compatible 3D printers:

  • Prusa MINI and similar size
  • and more...

If you are not sure about the compatibility of your 3D printer, please write to us and we will

3D printer enclosure, 30-series aluminium extrusion profiles, S large size, persp view-1 view, normal, no 3D printer
View-1 view - S large size, 30-series
image gallery

M small 30 enclosure

30-series enclosure

30-series aluminium extrusion profile 30x30mm, T-slot 6mm

M small size

Short version 3D printer enclosure

Same height as S small size enclosure

External and internal dimensions
(width x depth x height)

Overall external dimensions:
550 x 550 x 550 mm
Usable internal dimensions:
500 x 500 x 500 mm (printer enclosure) same as M large size enclosure

Standard features:

  • interchangeable doors - left or right side
  • integrated filament holder (max 4 filaments)
  • magnetic door holder
  • removable transparent acrylic side panels
  • non transparent side panels - white HDF
  • adjustable levelers
  • stackable design - up to 4 boxes can be stacked
  • all horizontal panels for suitable heavy load
  • ready for current or future addons

Addon features:

  • air filtration with changeable active carbon pellets
  • enclosure LED light - White or RGBW (can show colour by print status)
  • power supply unit with Raspberry Pi link (compatible with RPI 3, RPI 4, RPI Nano 2)
  • pull-out drawer (for Large Size)
  • black or custom aluminium profiles colour
  • non transparent side panels custom colour

3D printer compatibility
List of known compatible 3D printers:

  • Prusa Mk3 and similar size
  • Anycubic i3 Mega
  • and more...

If you are not sure about the compatibility of your 3D printer, please write to us and we will

3D printer enclosure, 30-series aluminium extrusion profiles, M small size, persp view-1 view, normal, no 3D printer
View-1 view - M small size, 30-series
image gallery

M large 30 enclosure

30-series enclosure

30-series aluminium extrusion profile 30x30mm, T-slot 6mm

M large size

Long version 3D printer enclosure with additional storage place for tools, filament and more.

Same height as S large size and L small size enclosures

External and internal dimensions
(width x depth x height)

Overall external dimensions:
550 x 550 x 700 mm
Usable internal dimensions:
500 x 500 x 500 mm (printer enclosure) same as M small size enclosure

500 x 500 x 144 mm (storage)

Standard features:

  • can be used upside down - storage place top
  • interchangeable doors - left or right side
  • integrated filament holder (max 4 filaments)
  • magnetic door holder
  • removable transparent acrylic side panels
  • non transparent side panels - white HDF
  • adjustable levelers
  • stackable design - up to 4 boxes can be stacked
  • all horizontal panels for suitable heavy load
  • ready for current or future addons

Addon features:

  • air filtration with changeable active carbon pellets
  • enclosure LED light - White or RGBW (can show colour by print status)
  • power supply unit with Raspberry Pi link (compatible with RPI 3, RPI 4, RPI Nano 2)
  • pull-out drawer (for Large Size)
  • black or custom aluminium profiles colour
  • non transparent side panels custom colour

3D printer compatibility
List of known compatible 3D printers:

  • Prusa Mk3 and similar size
  • Anycubic i3 Mega
  • and more...

If you are not sure about the compatibility of your 3D printer, please write to us and we will

3D printer enclosure, 30-series aluminium extrusion profiles, M large size, persp view-1 view, normal, no 3D printer
View-1 view - M large size, 30-series
image gallery

L small 30 enclosure

30-series enclosure

30-series aluminium extrusion profile 30x30mm, T-slot 6mm

L small size

Short version 3D printer enclosure

Same height as S large size and M large size enclosures

External and internal dimensions
(width x depth x height)

Overall external dimensions:
550 x 550 x 700 mm
Usable internal dimensions:
500 x 500 x 650 mm (printer enclosure) same as L large size enclosure

Standard features:

  • interchangeable doors - left or right side
  • integrated filament holder (max 4 filaments)
  • magnetic door holder
  • removable transparent acrylic side panels
  • non transparent side panels - white HDF
  • adjustable levelers
  • stackable design - up to 4 boxes can be stacked
  • all horizontal panels for suitable heavy load
  • ready for current or future addons

Addon features:

  • air filtration with changeable active carbon pellets
  • enclosure LED light - White or RGBW (can show colour by print status)
  • power supply unit with Raspberry Pi link (compatible with RPI 3, RPI 4, RPI Nano 2)
  • pull-out drawer (for Large Size)
  • black or custom aluminium profiles colour
  • non transparent side panels custom colour

3D printer compatibility
List of known compatible 3D printers:

  • Prusa Mk3 and similar size (with its filament holder)
  • Anycubic i3 Mega
  • and more...

If you are not sure about the compatibility of your 3D printer, please write to us and we will

3D printer enclosure, 30-series aluminium extrusion profiles, L small size, persp view-1 view, normal, no 3D printer
View-1 view - L small size, 30-series
image gallery

L large 30 enclosure

30-series enclosure

30-series aluminium extrusion profile 30x30mm, T-slot 6mm

L large size

Long version 3D printer enclosure with additional storage place for tools, filament and more.

External and internal dimensions
(width x depth x height)

Overall external dimensions:
550 x 550 x 850 mm
Usable internal dimensions:
500 x 500 x 650 mm (printer enclosure) same as L small size enclosure

500 x 500 x 144 mm (storage)

Standard features:

  • can be used upside down - storage place top
  • interchangeable doors - left or right side
  • integrated filament holder (max 4 filaments)
  • magnetic door holder
  • removable transparent acrylic side panels
  • non transparent side panels - white HDF
  • adjustable levelers
  • stackable design - up to 4 boxes can be stacked
  • all horizontal panels for suitable heavy load
  • ready for current or future addons

Addon features:

  • air filtration with changeable active carbon pellets
  • enclosure LED light - White or RGBW (can show colour by print status)
  • power supply unit with Raspberry Pi link (compatible with RPI 3, RPI 4, RPI Nano 2)
  • pull-out drawer (for Large Size)
  • black or custom aluminium profiles colour
  • non transparent side panels custom colour

3D printer compatibility
List of known compatible 3D printers:

  • Prusa Mk3 and similar size (with its filament holder)
  • Anycubic i3 Mega
  • and more...

If you are not sure about the compatibility of your 3D printer, please write to us and we will

3D printer enclosure, 30-series aluminium extrusion profiles, L large size, persp view-1 view, normal, no 3D printer
View-1 view - L large size, 30-series
image gallery

Practical solution

These practical solutions will offer you maximum comfort when using a 3D printer enclosure. Provides easy access through removable transparent plexiglass side panels. T-slots for mounting additional accessories, levelers for alignment on any surface. Removable door if you need access from another side.

Aluminium Extrusion Profiles, 30-series, 30x30mm, AC-30-6, natural anodized, persp view-3 view, normal

T-slot

Universal T-slot for adding any accessory. Suitable for T nuts or custom solutions.

Logo 02 black

Removable side panels

Transparent acrylic panels that you can remove at any time to enter inside enclosure

Plexi transparent perspective view 1 door 1 normal

Interchangeable doors

You can place the door on either side - replace for side panels. Possibility to add another door.

AL box natural perspective view 1 detail 01 np normal

Levelers

Levelers allow perfect alignment on any surface

Logo 02 black

Integraded filament holder

Integrated filament holder inside enclosure. You can store there many filaments.

Logo 02 black

Cable grommets

Transparent acrylic panels that you can remove at any time to enter inside enclosure

Logo 02 black

Storage space

Large size enclosures have additional storage space for storing filaments and tools

Logo 02 black

Fast assembly

This simple system allows quick assembly as well as disassembly

3D printer main features

None of our standard models fits your requirements? No problem! Tell us what size you require and we will create a price offer for you immediately.

3D printer enclosure main features

3D printer enclosure, 30-series aluminium extrusion profiles, M large size, persp section-1 view, normal, no 3D printer
Panels

Heavy duty horizontal panels for high load

Doors

Interchangeable doors. Can be places from side.

Profiles

Precise aluminium extrusion profiles

Storage

Additional storage space for filaments and tools

Caps

Cover caps. Stackable system.

Side panels

Removable transparent side panel for easy acces

Levelers

For perfect alignment on any surface

3D printer enclosure, 30-series aluminium extrusion profiles, M large size, persp section-1 view, normal, no 3D printer

Modular system

With our modular system you have unlimited possibilities in terms of size and shapes of the 3D printing farm

Combination examples of S and M size enclosures

Combination of S and M size enclosures

Combination of S and M size enclosures

Multiple M size enclosures

Multiple S size enclosures.

3D printer farm system

This system is created for 3D printer farms! It’s a stackable system so there’s no problem to create a wall of 3D printers. No racks, no shelves, just one 3D printer enclosure next to other. For more information see 3D printer farm system

Combination of S and M size enclosures

Combination of S and M size enclosures

Prusa MINI + Prusa Mk3S

Customize your own product

None of our standard models fits your requirements? No problem!

Use our Profile Enclosure Builder or contact us directly. Tell us what size you require and we will create a price offer for you immediately.

Shipping options

This product can be configured in many ways. Enclosures made of 20-series aluminium extrusion profiles are lighter than 30-series and they are cheaper to deliver for longer distance. You can also choose if you want complete assembly with all cover panels or just with horizontal panels or the last option – only aluminium extrusion profiles. The last option is the most economical but to complete the assembly of the product, it is necessary to obtain the material by your own, for example from local hardware suppliers. We provide you all the necessary data for manufacturing.

Complete assembly

Aluminium extrusions, fasteners, acrylic and other panel. Product is complete and ready to assembly.

Partial complete assembly

Aluminium extrusions, fasteners, horizontal panels (top and bottom). You can insert your 3D printer . If you need side panels you have to get them by yourself.

Economical assembly

Aluminium extrusions and fasteners only. You have to get all the panels by your own way. Low weight, cheaper shipping.

Other products

Did you not find what are you looking for? Try another products.
